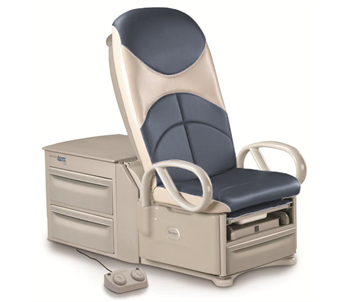

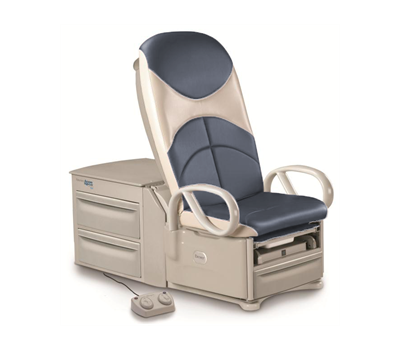

Brewer Brewer High-Low Table Bracket For Welch Allyn® Exam Light IV-Field Installed Model 102032

Advanced Safety

• Exclusive SafeGlide™ leg extension increases safety and satisfaction
• Return to chair feature
• Anti-tamper on/off switch limits accidental motion
• Sensors prevent injuries during table movement
• 18” (45.7 cm) low height, 28” (71.1 cm) when flat
• Easy on/off for patients
• Powered backrest adjusts for easy patient positioning

Patient Comfort

• Easy lateral wheelchair transfers
• Multi-density support upholstery
• Standard adjustable ergonomic stirrups
• Toe/leg extension & stainless steel debris tray
• Premium, plush upholstery available in 5 colors

Abundant Storage

• Pass-through work surface on side of table

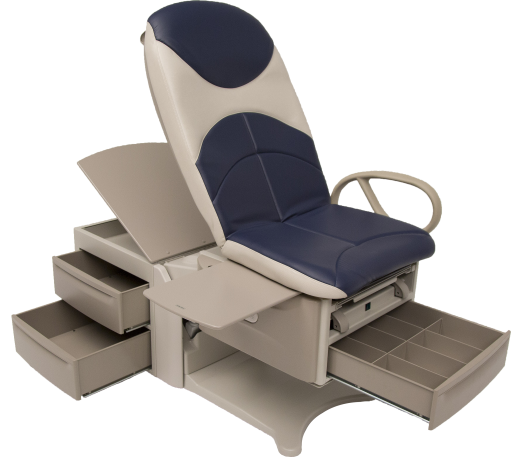

• Patented pass-through side drawers accessible from right or left side of the table
• Front drawer: 19.7” x 19.2” x 4” (50.3 cm x 48.8 cm x 9.7 cm)
• Side drawers: 22.7” x 20.2” x 7” (57.4 cm x 51.3 cm x 17.8 cm)
• Covered storage for up to 6 additional paper rolls
• Paper roll storage capacity: 23” x 23” x 3.25” (58.4 cm x 58.4 cm x 8.3 cm)
• Slide-through paper roll holder accepts 21” & 18” rolls (53.3 cm & 45.7 cm)

Table Specifications

• 700 lb (317 kg) weight capacity
• Standard patient assist grab bars
• Standard adjustable stirrups
• Standard foot control
• Standard 3-year warranty
• Height: 18” – 37” (45.7 cm – 94 cm)
• Length: 57”, extends to 78” (144.8 cm – 198.1 cm)
• Upholstery Width: 28” (71.1 cm)
• Leg extension length: 21” (53.3 cm)
• Goes flat at 28” (71.1 cm)
• 115VAC, 60Hz
• Safe, low voltage actuators
• Easy to clean, seamless upholstery
• 12 standard upholstery color options
• Custom colors available
