Hausmann Parallel Bars 10 Power Height. Mobility Platform Model 1398

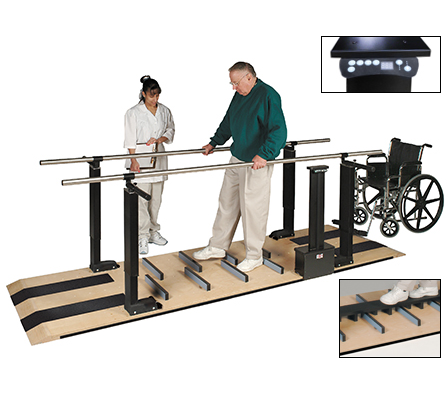

Model 1398 Patented Mobility Platform with Electric Height Bars
- Motorized height adjustment from 29” to 44” high.
- (4) Direct-drive synchronized lifting columns.
- Control panel located near entry end of bars.
- Push button controls and digital bar height readout.
- 1 ½” dia. Stainless Steel handrails.
- Width adjusts manually from 15” to 28” wide with easy-to-use control knobs.
- Width between uprights is 26 ½”.
- 10’ Satin-finish hardwood platform with recessed grommeted holes on surface.
- Placement Ladder consists of (11) variably placed Ladder Steps.
- Each Ladder Step has dowel pins, which fit into grommeted holes of platform. The spacing and location of Ladder Steps can be easily adjusted for patient’s gait training.
- Balance Beam is 6’5” long x 6” wide x 3” high. Balance Beam is equipped with anti-slip surface and dowel pins.
- Tapered ends with anti-slip tread for easy wheelchair access.
- Control box is double insulated for safety and equipped with 2-prong plug and cord.
- 110V, 60Hz, 2.5 Amps.
- English
- Metric
Weight Capacity: 400 lbs.
MODEL # | LENGTH | WIDTH* | HEIGHT |
---|---|---|---|
1398 | 10' | 15" - 28" | 29" - 44" |
