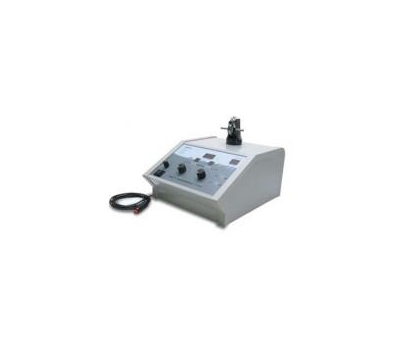

Metron ACCU-TRAC Traction Unit

Product Features

Extremely easy to operate, yet offers all the features required from a top-quality traction unit. Easy-read displays Intermittent and static traction Minimum and maximum force settings: 2.5 kgs-95 kgs Patient safety switch with adjustable alarm volume Product Specifications: Dimensions: 10.8" W x 10.8"H x 13.6"L Weight: 30 lbs. Power :100/120/220/24 Volts 50/60 Hz Power Consumption: 150 VA max Traction Force: 200 lb/91 kg max. 5 lb/2.5 kg. Computerized automatic compensation Force Display: Actual force/preset force – automatic switching display Traction Speed: Step less, continuous and adjustable Therapy Mode: Continuous/intermittent/harmonized intermittent/progressive Treatment Time: 1-99 minutes Current: 1.2 A (100 V, 120V), 0.6 A (220 V, 240 V) Allowable Voltage Fluctuation Max 10% Mains Fuses F1.6 A 250 V (for 100 V, 120V); F0.8 A 250 V (for 220 V, 440 V) Casing Leakage of Electricity 100 m A Ground Resistance: 0.1 Continuous Traction/Release Time: 0.99 seconds, independently set Safety System: Multiple protection alarms service/overload/min max/remote Electrical Safety Degree Class I/Type BF (IEC 60601-1 EMC Tested IEC 60601-1-2 requirements Classification of Equipment: Class IIb as per MDD 93/42/EEC Annex IX CE Marking: CE -0197
